Transformers
Transformers are one of the primary components for the transmission and distribution of electrical energy. Their design results mainly from the range of application, the construction, the rated power and the voltage level. There are also various special purpose transformers such as furnace transformers, which are basically in the range of power transformers as far as rated power and rated voltage are concerned. Furnace transformers are characterized by very high secondary currents and wide secondary voltage regulation in order to cope with the furnace needs, depending on the particular kind of cycle requested.

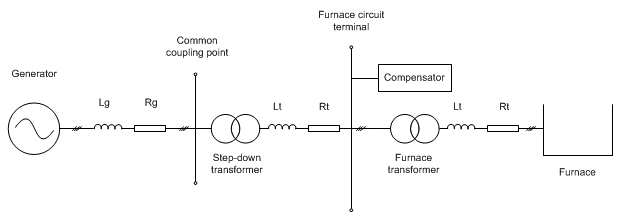

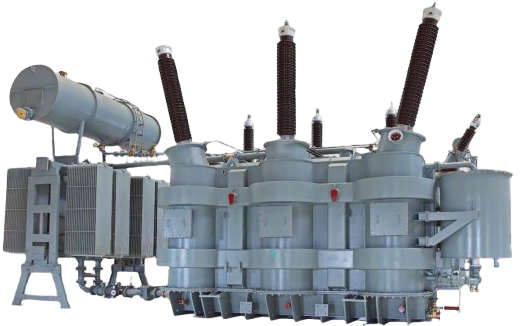

For many years, Electrical Arc Furnace (EAF) power transformers have been meeting very high supply needs of the steel industry's arc furnaces around the world. EAF transformers are suitable for steel furnaces, ladle furnaces (LF) and ferroalloy furnaces. They work under critical and severe conditions caused by overcurrents and overvoltages generated by short circuits in the furnaces. Arc furnace transformers are used for melting scrap metal. Usually when there is an EAF there is also an LF that is used to refine the metal melted by the arc furnace. Such kind of transformers are three phases.
We have experience in supplying the following types of transformers:
| Three phase (EAF) transformer | 90 MVA |
|---|---|
| Three phase (LF) transformer | 18 MVA |
| Three phase (LF) transformer | 13 MVA |
| Three phase (POWER) transformer | 63 MVA |
| Three phase (EAF) transformer | 45 MVA |
| Three phase (EAF) transformer | 85 MVA |
| Three phase (EAF) transformer | 130 MVA |
| Three phase (POWER) transformer | 160 MVA |
| Three phase (LF) transformer | 24 MVA |
Steel Making Equipment
Supply of Special Reducer, Mechanical Holding Devices and other equipment related to converter steel making for Bokaro Steel Plant (SAIL) in India. Generally, the group is currently involved in the execution of converter revamp project at SAIL. This project is one of a kind in terms of the complexity and logistics involved. Among other spare parts for converter, the equipment shipped includes Mesh Holding Device, Driving Sprockets and Chains, Special Reducer, Gear Box etc.
Graphite Electrodes
Leveraging our global network, reach, we offer turnkey solutions in complex projects in the field of ferrous metallurgy. We partner with Azovmash, one of the world's leading manufacturer of iron making, steel making equipment and carriage/lifting equipment.
We have delivered complex projects across various geographies, like supply and commissioning of Graphite Electrodes f rom major Chinese manufacturers to Azovmash and Dneprospetsstal in Ukraine.

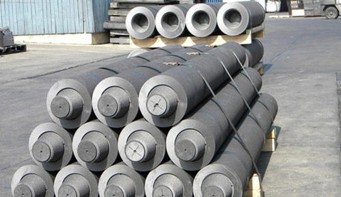

Graphite electrodes are widely used in steel, smelting non-ferrous smelting and silicon, phosphorus, etc. We can offer various grades and specifications of the graphite electrode with low resistance, high density, strong antioxidant properties, high processing precision, etc, satisfying the needs of different users. The offered products all meet international quality standards.
Physico-Chemical Specifications of HP Graphite Electrode :
| Item | Unit | Nominal Diameter (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| Ø200 ~ Ø400 | Typical value | Ø450 ~ Ø500 | Typical value | Ø550 ~ Ø600 | Typical value | |||
| Specific Resistance | Electrode | μΩ·m | 6.5 | 6.0 | 6.5 | 6.0 | 6.5 | 6.0 |
| Nipple | μΩ·m | 5.0 | 4.5 | 5.0 | 4.5 | 5.0 | 4.5 | |
| Bending Strength | Electrode | MPa | 10.5 | - | 10.0 | - | 10.0 | - |
| Nipple | MPa | 19.0 | - | 19.0 | - | 19.0 | - | |
| Young’s Modulus | Electrode | GPa | 12.0 | - | 12.0 | - | 12.0 | - |
| Nipple | GPa | 16.0 | - | 16.0 | - | 16.0 | - | |
| Bulk Density | Electrode | g/cm³ | 1.65 | 1.68 | 1.65 | 1.68 | 1.66 | 1.68 |
| Nipple | g/cm³ | 17.5 | 1.78 | 1.75 | 1.78 | 1.75 | 1.78 | |
| CTE (100-600 °C) | Electrode | ×10⁻⁶/°C | 2.40 | - | 2.40 | - | 2.40 | - |
| Nipple | ×10⁻⁶/°C | 2.20 | - | 2.20 | - | 2.20 | - | |
| Ash Content (for reference only) | % | 0.30 | - | 0.30 | - | 0.30 | - | |
Physico-Chemical Specifications of UHP Graphite Electrode :
| Item | Unit | Nominal Diameter (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| Ø200 ~ Ø400 | Typical value | Ø450 ~ Ø500 | Typical value | Ø550 ~ Ø600 | Typical value | |||
| Specific Resistance | Electrode | μΩ·m | 5.5 | 5.0 | 5.5 | 5.0 | 5.5 | 4.8 |
| Nipple | μΩ·m | 4.0 | 3.5 | 4.0 | 3.5 | 4.0 | 3.5 | |
| Bending Strength | Electrode | MPa | 11.0 | - | 11.0 | - | 12.0 | - |
| Nipple | MPa | 20.0 | - | 20.0 | - | 20.0 | - | |
| Young’s Modulus | Electrode | GPa | 14.0 | - | 14.0 | - | 14.0 | - |
| Nipple | GPa | 18.0 | - | 18.0 | - | 18.0 | - | |
| Bulk Density | Electrode | g/cm³ | 1.68 | 1.72 | 1.68 | 1.72 | 1.68 | 1.72 |
| Nipple | g/cm³ | 1.78 | 1.80 | 1.78 | 1.80 | 1.80 | 1.82 | |
| CTE (100-600 °C) | Electrode | ×10⁻⁶/°C | 1.50 | - | 1.50 | - | 1.40 | - |
| Nipple | ×10⁻⁶/°C | 1.40 | - | 1.40 | - | 1.20 | - | |
| Ash Content (for reference only) | % | 0.30 | - | 0.30 | - | 0.30 | - | |
Specification and Allowance of Graphite Electrode :
| Nominal Diameter | Actual Diameter | Nominal Length | Allowance | ||||
|---|---|---|---|---|---|---|---|
| mm | Inch | Max | Min | mm | Inch | mm | |
| 200 | 8 | 205 | 201 | 1600 / 1800 | 60 | ± 100 | |
| 250 | 10 | 256 | 252 | 1600 / 1800 | 60 / 72 | ± 100 | |
| 300 | 12 | 307 | 303 | 1800 | 72 | ± 100 | |
| 350 | 14 | 357 | 353 | 1800 | 72 | ± 100 | |
| 400 | 16 | 409 | 404 | 1800 / 2100 | 72 / 84 | ± 100 | |
| 450 | 18 | 460 | 455 | 1800 / 2100 | 72 / 84 | ± 100 | |
| 500 | 20 | 511 | 506 | 1800 / 2100 | 72 / 84 | ± 100 | |
| 550 | 22 | 562 | 556 | 2100 / 2400 | 84 / 96 | ± 100 | |
| 600 | 24 | 613 | 607 | 2100 / 2400 | 84 / 96 | ± 100 | |

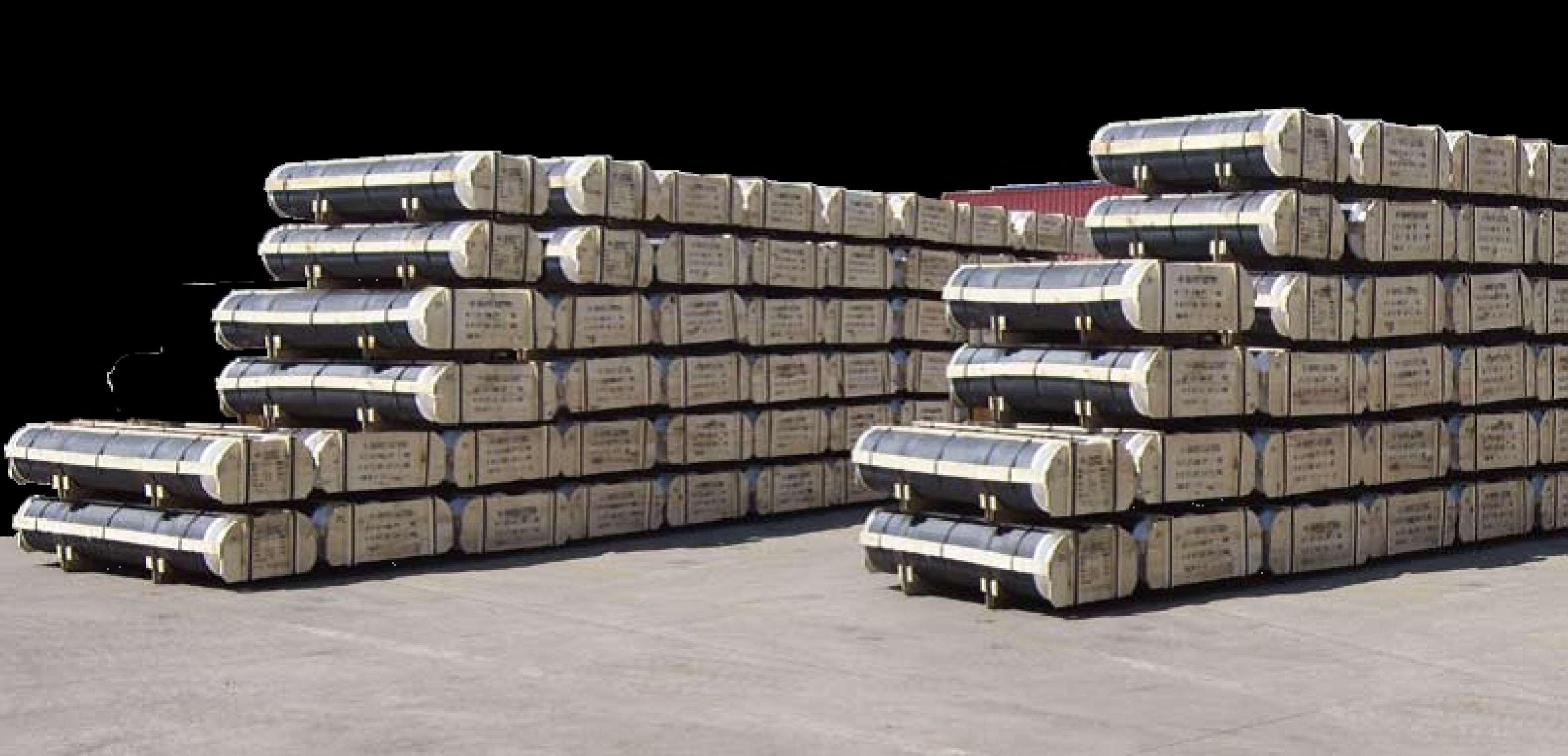

Graphite electrode is packaged by wooden cages and nipple is packaged by wooden boxes. Graphite electrode and nipple can be packaged together according to the requirements of the customers. The products are protected by waterproof and dustproof plastic inside and fixed by steel bands which fits for land and sea transportation.
MINE VENTILATION SOLUTIONS
At Steel Mont Pvt. Ltd, we understand the importance of a safe and efficient mine environment. Our advanced mine ventilation systems are designed to ensure optimal airflow, providing a healthy atmosphere for workers and preventing the buildup of harmful gases and airborne contaminants. With a focus on safety, sustainability, and innovation, we offer state-of-the-art solutions tailored to meet the unique challenges of each mine operation. Whether for underground mining or surface facilities, our ventilation systems help maintain compliance with regulatory standards while maximizing operational efficiency. Trust Steel Mont Pvt. Ltd for reliable, cutting-edge ventilation solutions that keep your workforce safe and your operations running smoothly.

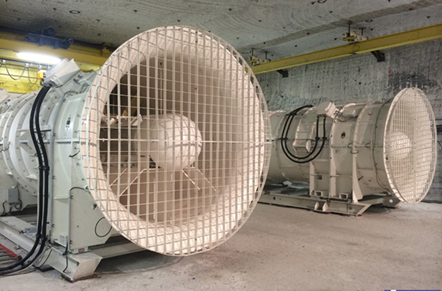

Main Mine Fans

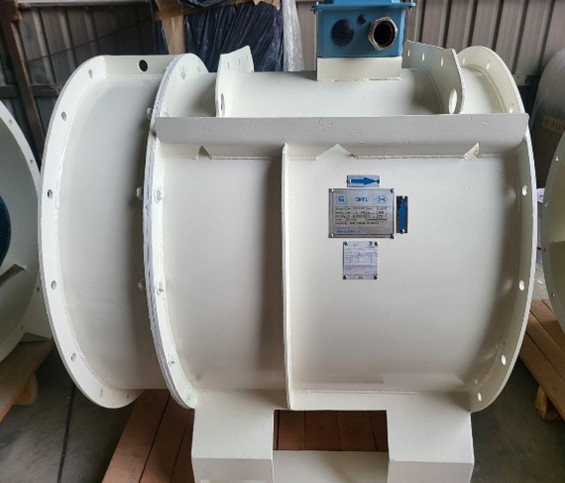

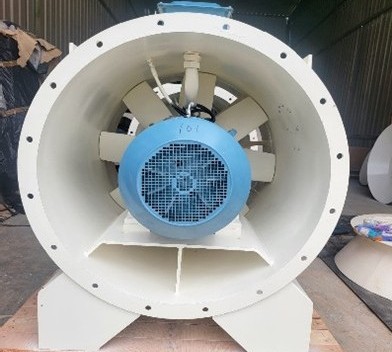

Auxiliary Mine Fans
