LONG PRODUCTS

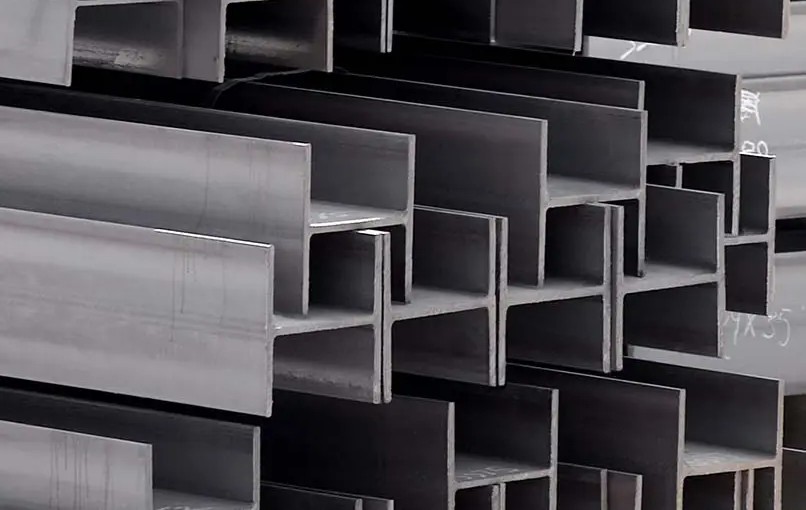

PARALLEL FLANGE BEAMS
Parallel flange beams and columns are structural elements used in construction and engineering projects. They have a wide flange shape with parallel sides and are commonly used in steel-framed buildings, bridges, and other structures to support loads and distribute weight evenly. These elements are known for their strength, durability, and ability to withstand heavy loads. We supply Parallel Flange Beam and Columns as per international specifications with variety of sizes.
NPB/WPB/UB/UC/IP/HE & W sections
| BEAMS | |||
|---|---|---|---|
| Universal beams (UB) EN10025-2,3,4 S275/S355/S420/S460 BS4-1:1993 (mm x mm x kg/m) | European I beams (IPE) DIN 1025/Euronorm EU 19-57 Euronorm EU 19-57 (Tol.-EN10034:93) (mm x mm x kg/m) | Narrow parallel flange beams (NPB)IS2062 E250/E280/E300/E410/E450/E550 IS 12778 (Tol. IS+A3:C312779) (mm x mm x kg/m) | American W sections Beams ASTM A36/A36M ASTM A6 (inch x inch x lbs/ft) |
| UB 152x89x16 | IPE 160x80x12.7 IPE 160x80x15.6 | - | - |
| - | IPE 180X90X19 IPEO 180X90X21 | NPB 180X90X15/19/21 | - |
| UB 203X133X25/30 | IPEA 200X100X18 IPE 200X100X22 IPEO 200X100X25 | NPB 200X100X18/22/25 | 8X5.2X18/21 |
| UB 254X146X31/37/43 | - | - | 10X5.75X22/26/30 |
| - | - | - | 12X6.5X30/35 |
| UB 356X171X45/51/57/67 | IPEA 360X170X50 IPE 360X170X57 IPO 360X 170X66 | - | 14X6.75X30/34/38 |
| UB 406X140X39/46 UB 406X178X54/60/67/74 | IPEA 400X180X57 IPE 400X180X66 IPEO 400X180X76 | NPC 400X180X57/66/76 | 16X7X36/40/45/50/57 |
| UB 457X152X52/60/67/74/82 | - | NPB 450/140/40 | 18X6X35/40/46 |
| UB 457X191X67/74/82/89/98 | IPEA 450X190X67 IPE 450X190X78 IPEO 450X190X92 | NPB 450X190X67/78/92 | 18X7.5X45/50/55/65/71 |
| - | - | NPS 500X150X52 NPS 500X180X66 | - |
| UB 533X210X92/101/109/122 | IPEA 500X200X79 IPE 500X200X91 IPEO 500X200X107 | NPB 500X200X79/91/107 | 21X8.25X62/68/73/83/95 |
| UB 610X229X101/113/125/140 | IPEA 600X220X108 IPE 600X220X122 IPEO 600X220X154 | NPB 600X220X101/108/122/154 | 24X9X68/76/84/94/103 |
| COLUMNS | |||
|---|---|---|---|
| Universal columns (UC) EN10025-2,3,4 S275/S355/S420/S460 BS4-1:1993 (mm x mm x kg/m) | European H beams (HEB) DIN 1025/Euronorm EU 19-57 (Tol.-EN10034:93) (mm x mm x kg/m) | CWide parallel flange beams IS2062 E250/E280/E300/E410/E450/E550 IS 12778 (Tol. IS12779) (mm x mm x kg/m) | American W sections Columns ASTM A36/A36M ASTM A6 (inch x inch x lbs/ft) |
| UC 152X152X23/30/37/51 | - | WPB 150X160X35 | 6X6X15/20/25 |
| - | UC 203X203X46/52/60/71/86 | - | 8X8X31/35/40/48/58 |
| UC 254X254X73/89/107/132/167 | - | - | 10X10X49/54/60/68/78/88/100/112 |
| UC 305X305X97/116/137/158/198/240/283 | HEA 320X300X98 HEB 320X300X127 HEM 320X300X245* | WPB 320X300X74/98/127/245* | 12X12X65X72/79/87/96/106/120/136 |
| UC 356X368X129/153/177/202 | HEA 600X300X178 HEB 600X300X122 HEM 600X300X285 | WPB 600X300X129/178/212/285 | 14X14.5X90/99/109/120/132 |
| UC 356X406X235/287 | HEA 700X300X204 HEB 700X300X241 HEM 700X300X301 | WPB 700X700X300X150/204/240/301 | 14X16X145/176 |
| - | HEA 800X300X224 HEB 800X300X262 HEM 800X300X317 | WPB 800X700X176/224/262/317/377 | - |
| - | HEA 900X300X252 HEB 900X300X291 HEM 900X300X333 | WPB 900X300X252/291/333 | - |

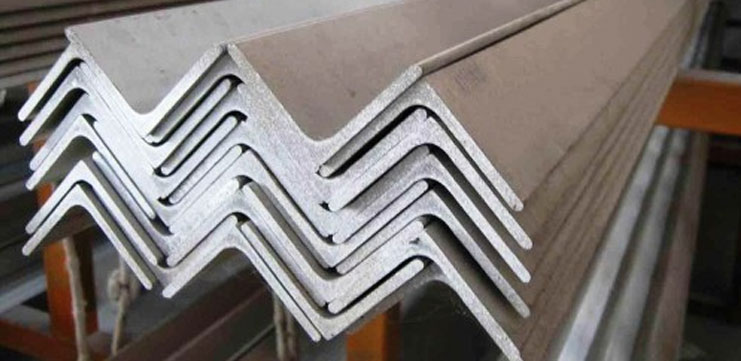

EQUAL ANGLES BAR
Equal Angles Bar are structural steel components widely used in construction, fabrication, and engineering projects. They provide excellent strength, stability, and versatility, making them suitable for a variety of applications, including framing and support structures.
| SIZE TABLE | |||||||
|---|---|---|---|---|---|---|---|
| SR. No. | SIZE | THICKNESS (mm) | MASS (Kg/mtr) | SR. No. | SIZE | THICKNESS (mm) | MASS (Kg/mtr) |
| 1 | ISA 35 x 35 | 4 | 2.1 | 32 | ISA 100 x 100 | 12 | 17.7 |
| 2 | ISA 35 x 35 | 5 | 2.6 | 33 | ISA 110 x 110 | 8 | 13.4 |
| 3 | ISA 35 x 35 | 6 | 3.0 | 34 | ISA 110 x 110 | 10 | 16.6 |
| 4 | ISA 40 x 40 | 4 | 3.4 | 35 | ISA 110 x 110 | 12 | 19.7 |
| 5 | ISA 40 x 40 | 5 | 3.0 | 36 | ISA 110 x 110 | 15 | 24.8 |
| 6 | ISA 45 x 40 | 5 | 3.5 | 37 | ISA 120 x 120 | 8 | 14.7 |
| 7 | ISA 45 x 45 | 4 | 2.7 | 38 | ISA 120 x 120 | 10 | 18.2 |
| 8 | ISA 45 x 45 | 5 | 3.4 | 39 | ISA 120 x 120 | 12 | 21.6 |
| 9 | ISA 45 x 45 | 6 | 4.0 | 40 | ISA 120 x 120 | 15 | 26.6 |
| 10 | ISA 50 x 50 | 4 | 3.0 | 41 | ISA 130 x 130 | 8 | 15.9 |
| 11 | ISA 50 x 50 | 5 | 3.8 | 42 | ISA 130 x 130 | 10 | 19.7 |
| 12 | ISA 50 x 50 | 6 | 4.5 | 43 | ISA 130 x 130 | 12 | 23.5 |
| 13 | ISA 65 x 65 | 5 | 4.9 | 44 | ISA 130 x 130 | 15 | 28.9 |
| 14 | ISA 65 x 65 | 6 | 5.8 | 45 | ISA 150 x 150 | 16 | 30.7 |
| 15 | ISA 65 x 65 | 8 | 7.7 | 46 | ISA 150 x 150 | 10 | 22.9 |
| 16 | ISA 65 x 65 | 10 | 9.4 | 47 | ISA 150 x 150 | 12 | 27.3 |
| 17 | ISA 75 x 75 | 5 | 5.7 | 48 | ISA 150 x 150 | 14 | 31.55 |
| 18 | ISA 75 x 75 | 6 | 6.8 | 49 | ISA 150 x 150 | 15 | 33.8 |
| 19 | ISA 75 x 75 | 8 | 8.9 | 50 | ISA 200 x 200 | 16 | 35.8 |
| 20 | ISA 75 x 75 | 10 | 11 | 51 | ISA 200 x 200 | 18 | 40.1 |
| 21 | ISA 80 x 80 | 6 | 7.3 | 52 | ISA 200 x 200 | 20 | 44.1 |
| 22 | ISA 80 x 80 | 8 | 9.6 | 53 | ISA 200 x 200 | 10 | 30.8 |
| 23 | ISA 80 x 80 | 10 | 11.8 | 54 | ISA 250 x 250 | 12 | 36.9 |
| 24 | ISA 80 x 80 | 12 | 14 | 55 | ISA 250 x 250 | 16 | 48.5 |
| 25 | ISA 90 x 90 | 6 | 8.2 | 56 | ISA 250 x 250 | 20 | 60 |
| 26 | ISA 90 x 90 | 8 | 10.8 | 57 | ISA 250 x 250 | 25 | 73.9 |
| 27 | ISA 90 x 90 | 10 | 13.4 | 58 | ISA 250 x 250 | 25 | 93.75 |
| 28 | ISA 90 x 90 | 12 | 15.8 | 59 | ISA 250 x 250 | 32 | 120 |
| 29 | ISA 100 x 100 | 6 | 9.2 | 60 | ISA 250 x 250 | 35 | 113.25 |
| 30 | ISA 100 x 100 | 8 | 12.1 | 61 | ISA 250 x 250 | 40 | 150 |
| 31 | ISA 100 x 100 | 10 | 14.9 | ||||
Note : We can also supply sizes as per ASTM or EN standards

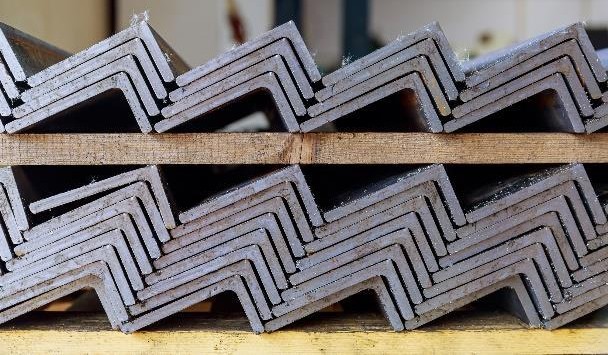

UNEQUAL ANGLES BAR
Unequal Angles are structural steel components widely used in construction, fabrication, and engineering projects. They provide excellent strength, stability, and versatility, making them suitable for a variety of applications, including framing and support structures.
| SIZE TABLE | |||||||
|---|---|---|---|---|---|---|---|
| SR. No | SIZE | SR. No | SIZE | ||||
| 1 | 45 x 30 mm (3 to 6 mm) | 5 | 125 x 75 mm (5 to 10 mm) | ||||
| 2 | 75 x 50 mm (6 to 10 mm) | 6 | 150 x 75 mm (8 to 12 mm) | ||||
| 3 | 90 x 60 mm (6 to 12 mm) | 7 | 150 x 90 mm (8 to 12 mm) | ||||
| 4 | 100 x 75 mm (6 to 12 mm) | 8 | 150 x 115 mm (8 to 12 mm) | ||||
Note : We can also supply sizes as per ASTM or EN standards
CHANNELS
Channels are structural steel components commonly used in construction, industrial applications, and support frameworks. They offer high strength, durability, and versatility, making them ideal for load-bearing applications in bridges, buildings, and heavy equipment.
| SIZE TABLE | |||||||
|---|---|---|---|---|---|---|---|
| SR. No | SIZE | MASS (Kg/mtr) | |||||
| 1 | MC 75 x 40 | 6/7.14 | |||||
| 2 | MC 100 x 50 | 8.90/9.56 | |||||
| 3 | MC 125 x 65 | 13.1 | |||||
| 4 | MC 150 x 75 | 16.8 | |||||
| 5 | MC 175 x 75 | 19.6 | |||||
| 6 | MC 200 x 75 | 22.3 | |||||
| 7 | MC 250 x 82 | 34.2 | |||||
| 8 | MC 300 x 90 | 36.3 | |||||
| 9 | MC 400 x 100 | 50.1 | |||||

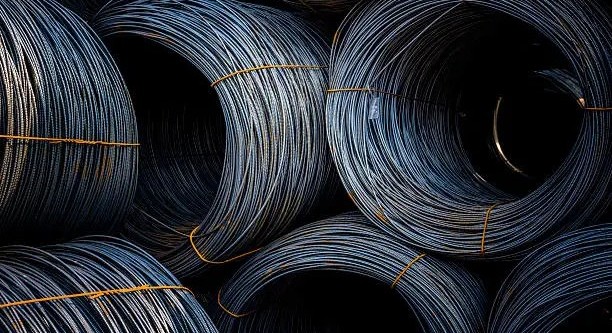

WIRE RODS
We supply low carbon, medium carbon, high carbon, and other special grades that include Cold Heading Quality (CHQ), electrode quality, and high carbon wire rods for spring steel, spoke wire, pre-stressed concrete, tyre bead and ACSR and other special steel grade wire rod.
| GRADES | DIAMETER (MM) | COIL WEIGHT (MT) |
|---|---|---|
| ASTM A510/A510M: SAE1006, SAE1008; SAE1010; SAE1012; SAE1015; SAE1018; SAE1010; SAE1045; SAE1065; SAE1080, etc. (as per customer request) | 5.5; 6.0; 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0; 10.5; 11.0; 11.5; 12.0; 12.5; 13.0; 13.5; 14.0; 14.5; 15.0; 15.5; 16.0; 16.5; 17.0; 17.5; 18.0; 18.5; 19.0; 19.5; 20.0 | Up to 2.5 |

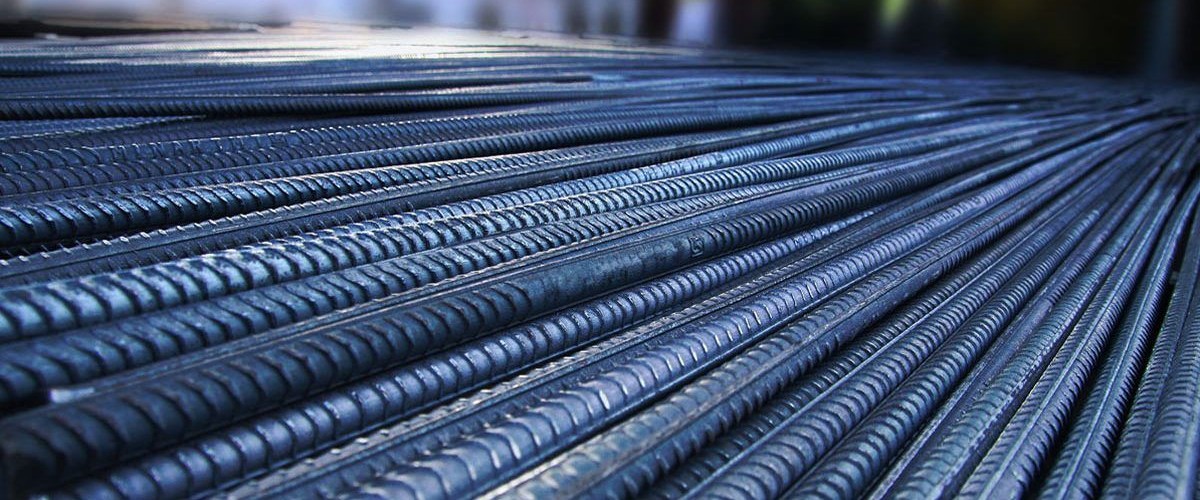

TMT (Thermo Mechanically Treated) Bar
We supply high-strength rebars that conform to various International Standard like ASTM, EN, BST, DIN, IS standard etc. in various quality including EQR, and CRS quality.
| GRADES | DIAMETER (mm) | COIL WEIGHT (MT) |
|---|---|---|
| B500A, B500B, B500C, DIN4449-2003 Grade — 40; 60; 75; 80; 100 ASTM A615 Fe500D, Fe500D and Fe600 | 8; 10; 12; 14; 16; 20; 25; 28; 32; 36; 40 | Up to 4 |

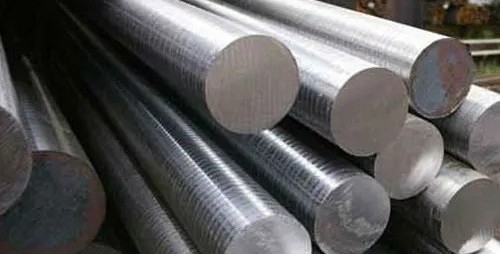

HOT ROLLED ROUND STEEL BARS
We supply high quality Hot Rolled Round bar or various applications like mechanical components such as gears, hubs, shafts, drives and many more can be obtained by die pressing and forging. We supply round bar as per international specifications as follows :
| Grades | Diameter (mm) | Length (mm) |
|---|---|---|
| ASTM A105, ASTM A350, LF2; 42CrMo4; S235JR; S355J2; C10E; C15E; C35E; C45E; C55; C60; 20MnVS6; 20MnCrS5; 25CrMoS4; 42CrMoS4; 38MnVS6 and others as per customer’s request | 6–30; 32–63; 65–78; 80–320 | up to 12000 |
PIPES

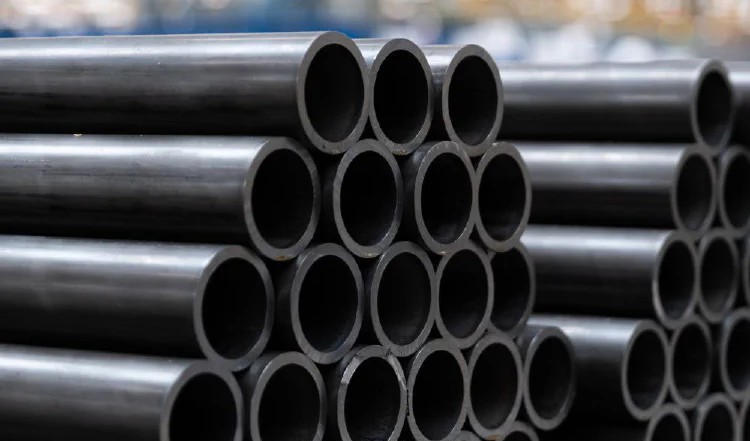

SEAMLESS PIPES
Seamless pipe, as the name suggests, is a pipe without a seam or a weld-joint. Seamless pipe can withstand higher pressure, higher temperature, higher mechanical stress & corrosive atmosphere and find wide applications in Oil & Gas, Refinery, Petrochemical, Chemical, Fertilizer, Power, Automotive, Bearing, Mechanical & Structural applications.
| GRADES | PIPE VARIANT | OD (mm) |
|---|---|---|
|
API 5L (Gr B to X 70), PSL I & II ASTM/ASME A/SA 106 Gr B/C, A/ SA53 Gr. B/C A/SA 333 Gr 1/Gr 6 ASTM/ASME – A/SA179/192/209/210/213/334/335, T/P-11, T/P-22 EN 10216-1 (P195 TR1/TR2, P235 TR1/2, P265 TR1/TR2) EN 10216-2 (P-195GH, P235GH, P265GH) EN 10216-3 (P275 NL1/NL2, P355N/NH, P355NL1/NL2) EN 10210-1 (S235JRH to S355J2H, S275NH to S355 NH) EN 10297-1 (E235, E275, E315, E355) EN 10255 (S195T) ASTM A519, 1019, 1026, 4130, 4140 CSA Z245.1 Gr. 241 Cat I/II, Gr 290 Cat I/II, Gr 359 Cat I/II, Gr. 448 Cat I/II, NACE – MR0175/ISO15156-2 (Region-3) and MR0103, Sour Service API 5CT (J55, K55, N80 Type 1, N80 Type Q, L80 Type 1, L80 Type 13Cr, P110, Q125, T95), PSL I & II API Connections (8 RD) Premium Connection API 5DP (E75, X95, G105, S135) PSL I & PSL II |
Seamless Tubes and Pipes Seamless Tubing Seamless Casing Coupling Stock Pipe Drill Pipes Coupling for OCTG Products |
½” - 16” |

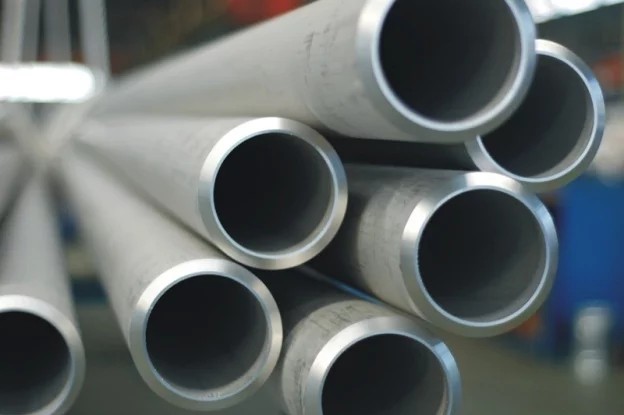

STAINLESS STEEL SEAMLESS PIPE
We Supply Stainless Steel Seamless Tubes & Pipes for niche market such as Oil & Gas, Refinery & Petrochemical, Dairy, Chemical & Fertilizer, Thermal, Solar & Nuclear Power, LNG, Desalination, Defence, Aerospace, Chillers & Cooling system, Pulp & Paper Industry, Automobile etc as per all international standard in various size required by customer.
| GRADES | PIPE VARIANT | OD (mm) |
|---|---|---|
|
ASTM A/SA 249, A269, A/SA688 EN 10217-7 as per ISO Tolerance ASTM A312/ASME SA312 ASTM A 358, A928, A778, A789 ASTM/ASME- A/SA 312/EN10217-7 as per ISO Tolerance ASTM A/ASME SA213, A/SA789, A269 EN10216-5 As per ISO Tolerance High Frequency Induction Healing |
Welded Stainless Steel Tube (Heat Exchanger, Condenser and LP/HP Heater U Tube) Welded Stainless Steel/Duplex/Super Duplex Pipes Stainless Steel/Duplex/Super Duplex Seamless Pipes Stainless Steel Seamless Tubes Hot Induction Bends-Seamless & Welded |
0.5”-4.5” NB 0.5”- 72” NB 0.5”- 12” NB 0.23”-4.5” NB 4”- 56” NB |
WELDED PIPES : ERW
We Supply ERW Steel Pipes, Spiral Steel pipe, SAW pipe for Oil and Gas Sector, petrochemical industries, refineries, water and sewage applications conforming to various International Standards Including ASTM, ASME, EN, API, BS etc.
| GRADES | NPS | THICKNESS |
|---|---|---|
|
API5L upto X-80, PSL1&2, API 5CT H40, J55, K55 PSL1, EN : 10255/10219, EN : 10217-1, AS : 1074, IS :1239, IS :3589, IS :1161, IS :4923, AS NZ 1163: 2016, ASTM A 53. BS EN – 39, ASTM A 500 ASTM A 252, ASTM A 795, SLS 829:2009 etc. |
½” to 16″(15 nb) (406 nb) |
1.0 mm to 12.7 mm |

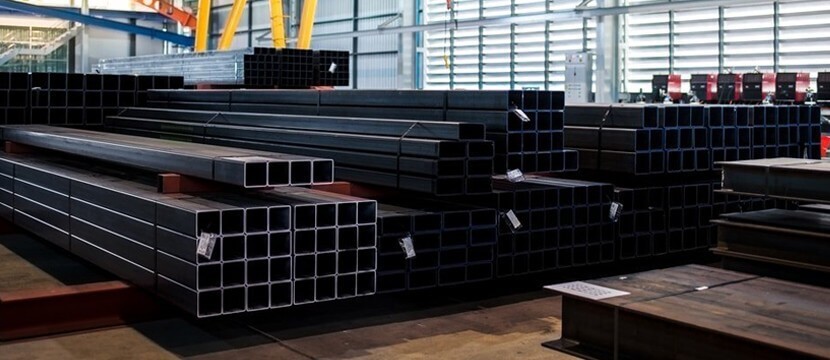

HOLLOW SECTION
We Supply various range of square and rectangular black hollow section tubes used as a building material for regular residential, commercial, and infrastructure constructions.
| GRADES | SIZE | LENGTH |
|---|---|---|
|
SHS & RHS IS : 4923 : 2017/EN 10219-1 : 2006*/ASTM A-500 |
12mm x 12mm to 1000mm x 1000mm
|
4-12Mtr |

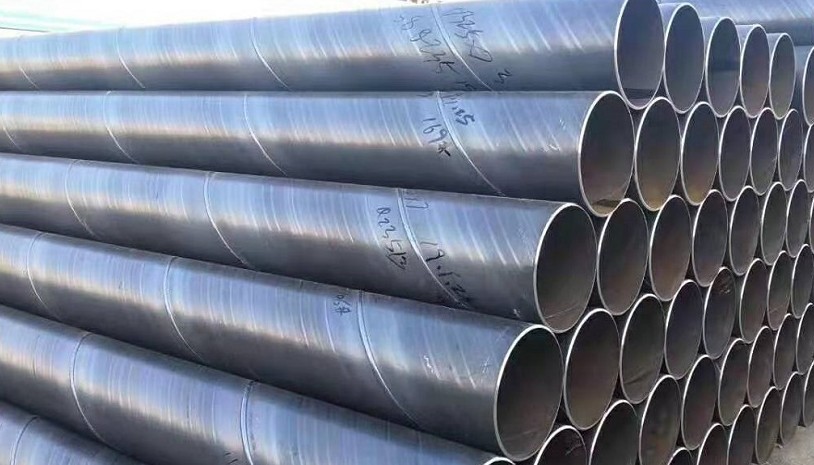

SPIRAL PIPE
Spiral welded pipe is made of steel coils that have been spiral-formed into a specialized pipe shape. It has several advantages over traditional straight-seam pipes, including increased resistance to corrosion, strength and flexibility in high temperatures, reduced wall thickness compared to other types of pipes, and cost savings in production due to the efficient manufacturing process.
| GRADES | SIZE | THICKNESS |
|---|---|---|
|
API 5L GR upto X80, Upto ASTM A 252, ASTM A 139, IS 3589. IS 5504 |
18″ (457 mm) to 105″ (2667mm) |
5.2 mm to 25.4 mm |

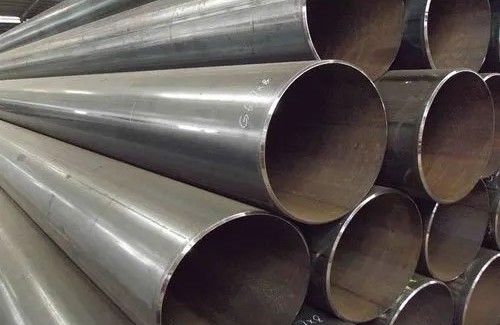

CARBON STEEL SAW PIPE
We supply large diameter Submerged Arc Welded (SAW) Pipes high quality pipes conforming to various International Standards used in transportation of Oil, Gas, Slurry and Water. The pipes are supplied according to appropriate standards as well as customer specifications in a large variety of steel grades and dimensions. Specific requirements on execution, tolerances, lengths, and mechanical & chemical properties are offered on request to meet the project requirements.
| GRADES | SIZE | THICKNESS |
|---|---|---|
| X80 Max | 16”-60” | Up to 2” |
FLAT PRODUCTS

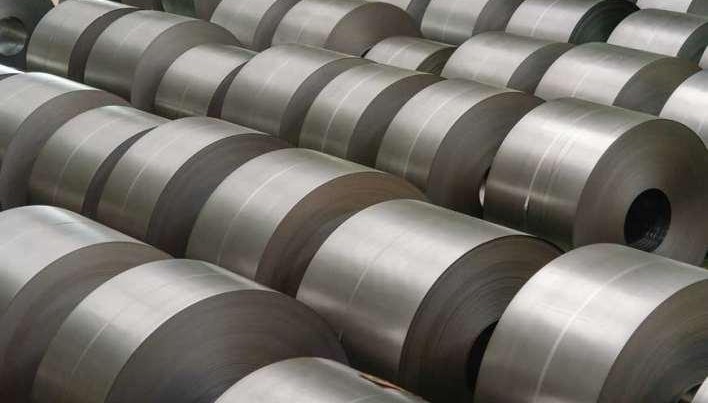

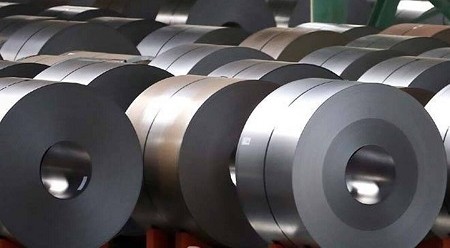

HR COIL (HOT ROLLED COILS & SHEETS)
Hot-rolled coils and sheets offer solutions to a variety of requirements and redefine the market norms with best quality and best-in-class service offerings. We cater to customers across industries and different segments, including Automotive, Railways, Yellow Goods, Agriculture, Pipe and Fabrication.
| GRADES | Thickness (mm) | Coil Width (mm) | Sheet Length (mm) |
|---|---|---|---|
|
S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2 (also +N for all grades) S420M, S420ML, S355–S460 M/ML, DD11, DD12, DD14, SAE 1005, SAE 1006, SAE1008, etc |
1.2–25.0 | up to 2000 | up to 12000 |
STEEL PLATES
Steel Plates are flat-rolled steel sheets used in various applications including Auto-mobile, shipbuilding, pressure-vessels, wind towers, construction, manufacturing, and industrial applications. They offer excellent strength, durability, and resistance to corrosion, making them ideal for structural frameworks, shipbuilding, and heavy machinery.
| GRADES | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2 (also +N for all grades) S420M, S420ML, S355–S460 M/ML, DD11, DD12, DD14, SAE 1005, SAE 1006, SAE1008, Lloyds /ABS Grades API X42/X52/X60/X65/X70/X80 PSL 1 & 2 etc | 5-200mm | 1500- 5000mm | 24000mm |

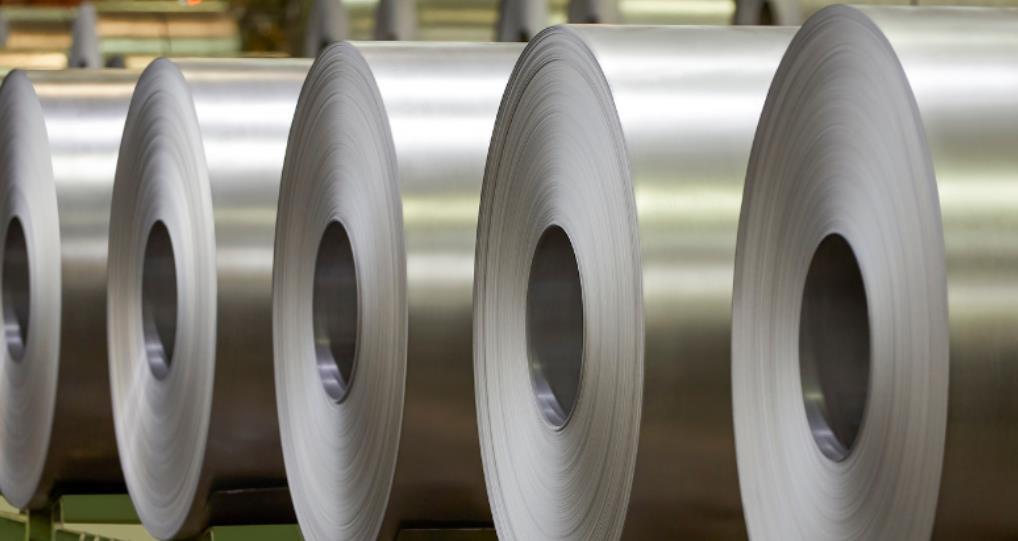

COLD ROLLED (CR) COILS
Cold Rolled (CR) Coils are sheet & strips with smooth surfaces, having a better surface finish with accurate dimensions in thinner thickness, cold roller Annealed is manufactured in Deep Drawing, Extra Deep Drawing, Interstitial free Steels and High Strength grades, which are then conformed to JIS, EN, ASTM and IS Standards.
| GRADES | Thickness (mm) | Width (mm) | Length |
|---|---|---|---|
| Cold Forming Steel (DC01, DC03, DC04, DC05, DC06, DC04-C590), Enameling Steel (DC01EK, DC04EK) | 0.25–3.00 | Up to 1500 | As per customer requirement |

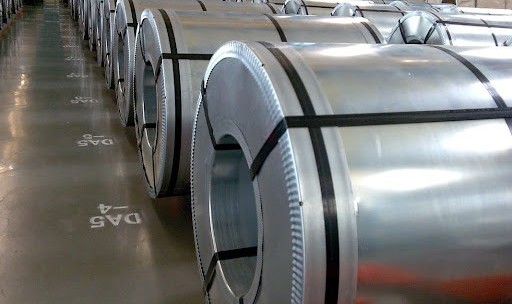

GALVANISED COIL
Galvanized steel is high in strength, corrosion-resistant, eco-friendly, durable and lightweight. The zinc-iron alloy layers formed during the process create a protective coat around the steel, which helps keep the moisture out and hence preventing corrosion. The galvanizing process also provides excellent adhesion and abrasion resistance
| GRADES | Thickness (mm) | COATING (Z) | Length (mm) |
|---|---|---|---|
|
Commercial Soft (CS) Commercial Hard (CH) DX ( YS 310 Max ) DD ( YS 260 Max ) ST ( YS 340 Min) Deep Drawing (Grade DD) Extra Deep Drawing (Grade EDD) Corrugated ordinary (Grade O) As per IS 277, JIS G 3302, AS1397, EN 10326, EN 10327, ASTM A 653 |
0.18 to 3.00 | 90-600 GSM | As per customer requirement |

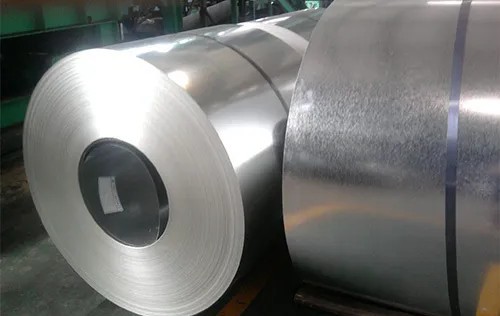

GALVALUME
The alloy-coated product contains 55% aluminium, 43.5% zinc and 1.5% silicon by weight. Made with the traditional hot-dipping process, Galvalume is a suitable match for applications that demand high corrosion resistance and heat reflectivity. It can be use across applications like construction, appliances, agricultural equipment, and several non-exposed automotive components.
| GRADES | THICKNESS (mm) | COATING (Z) | WIDTH(mm) | SHEET LENGTH (mm) |
|---|---|---|---|---|
|
Grade 50 CL- 2 Grade 50 CL- 1 Grade 50 CL- 4 Grade 80 CL- 1 YS 300 YS 350 YS 550 As per ASTM A792 and IS 15961 |
0.7-2.2 |
150-200 GSM |
1250mm Max |
As per customer requirement |

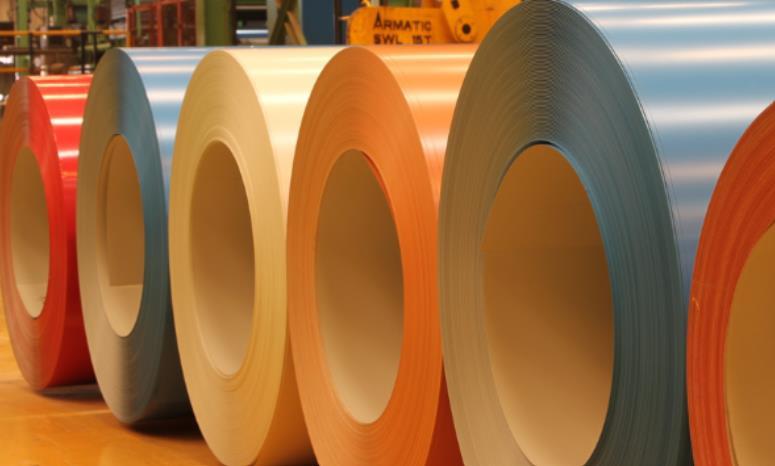

Pre-painted Galvanized coil and Pre-painted Galvalume
Colour Coated product offering combines the strength of steel, the beauty of paint and enhanced corrosion resistance in an unbeatable package. pre-painted products are available in a variety of paint systems, including Regular Modified Polyester, Silicon Modified Polyester, Super Durable Polyester, Poly Vinylidene Fluoride and Vinyl Coated Metal.
| GRADES | THICKNESS (mm) | COATING (Z) | WIDTH (mm) | LENGTH |
|---|---|---|---|---|
|
345-550MPa |
0.3-1.5 (TCT) |
As per customer requirement |
Up to 1550mm |
As per customer requirement |

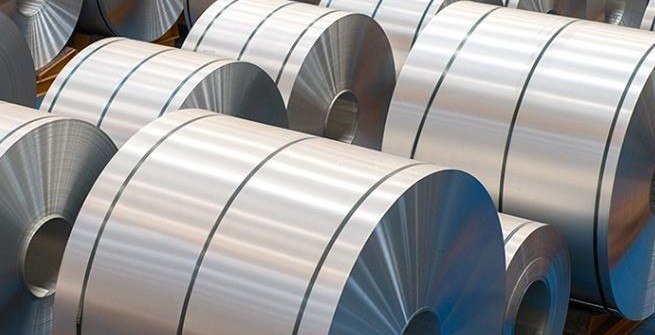

ELECTRICAL STEEL
Electrical Steel is speciality steel used in the cores of electromagnetic devices such as motors, generators, and transformers because it reduces power loss. It is an iron alloy with silicon as the main additive element (instead of carbon).
COLD ROLLED NON GRAIN ORIENTED ELECTRICAL STEEL (CRNO)
It is used when cost is more important than efficiency and for applications where the direction of magnetic flux is not constant, as in electric motors and generators with moving parts.
| GRADES | Thickness (mm) | Width (mm) | Length |
|---|---|---|---|
|
35C250, 35C270, 35C300, 35C360, 50C270, 50C290, 50C310, 50C350, 50C400, 50C470, 50C600 & 50C800 As per IS648:2022 |
0.35, 0.50, 0.65 |
1200-1250mm |
Coil |
COLD ROLLED GRAIN ORIENTED ELECTRICAL STEEL (CRGO)
Grain-oriented steel is used in large power and distribution transformers and in certain audio output transformers
| GRADES | Thickness (mm) | Width (mm) | Length |
|---|---|---|---|
|
Conventional & HP Grades: 23HP80d, 23HP85d, 23HP90d, 23HP95d, 23HP100d, 27HP90d, 27HP95d, 27HP100, 27HP110, 30HP105, 30HP110, 30HP120, 35HP115, 35HP125, 35HP135 As per IS3024:2015 |
0.23, 0.27, 0.30, 0.35 |
900-1100 |
Coil |
